MLDD 4-Way Power Dividers

KRYTAR MLDD 4-way power dividers lend themselves to emerging wireless ultra-broadband designs and many test and measurement applications. KRYTAR’s power dividers offer the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. Our 4-way power dividers can also be manufactured to meet military specifications. KRYTAR offers complete engineering services for custom designs that meet or exceed your critical performance and/or packaging specifications.

FEATURES

0.5 to 40 GHz

MLDD

Patented Designs

Product ImageModel NumberSorting NoFrequency Min. (GHz)Frequency Max. (GHz)Maximum VSWR InMaximum VSWR OutInsertion Loss (dB)Isolation (dB) Amplitude Tracking (dB) Phase Tracking (Degrees)Data Sheet / Outline DrawingsAdd To RFQ
MLDD 4-Way Power Dividers 7010400
7010400 011401.81.86.5111.522PDF
MLDD 4-Way Power Dividers 7010400K
7010400K 021401.81.86.5111.522PDF
MLDD 4-Way Power Dividers 7030400
7030400 033401.90 to 32 GHz
2.50 to 40 GHz
1.70 to 32 GHz
2.00 to 40 GHz
3.00 to 32 GHz
3.60 to 40 GHz
130.511 to 32 GHz
15 to 40 GHz
PDF
MLDD 4-Way Power Dividers 7030400K
7030400K 043401.90 to 32 GHz
2.50 to 40 GHz
1.70 to 32 GHz
2.00 to 40 GHz
3.00 to 32 GHz
3.60 to 40 GHz
130.511 to 32 GHz
15 to 40 GHz
PDF
MLDD 4-Way Power Dividers 7005265
7005265 050.526.51.81.74.3161.215PDF

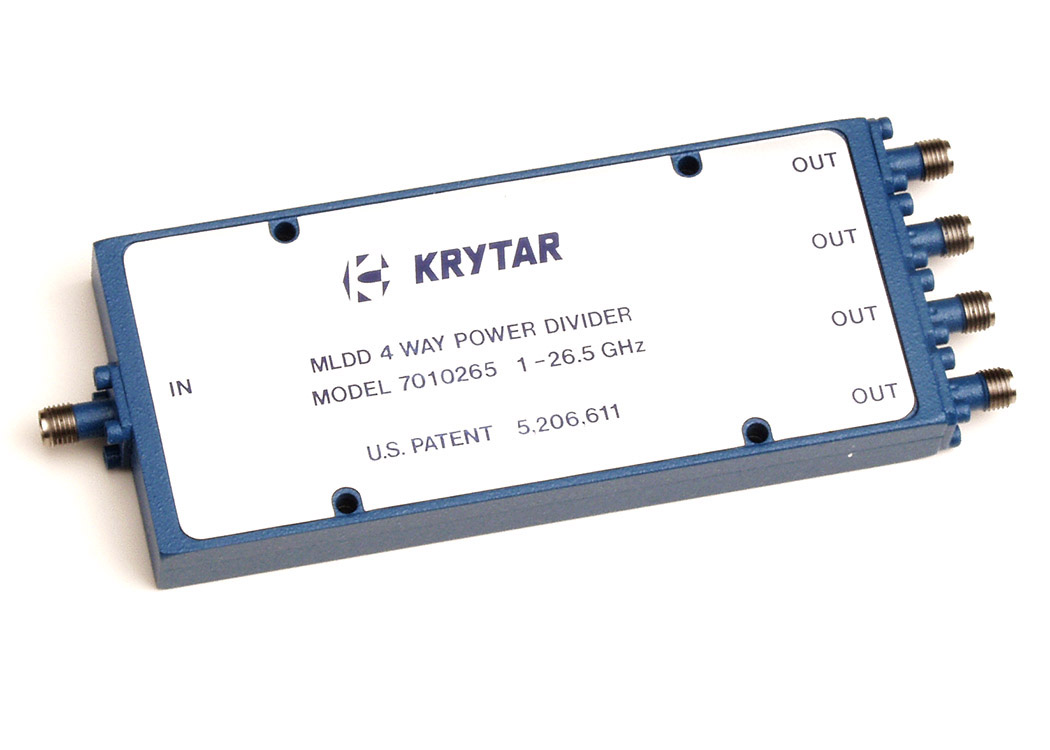

MLDD 4-Way Power Dividers 7010265
7010265 06126.51.91.73.316115PDF
MLDD 4-Way Power Dividers 7020265
7020265 07226.51.91.72.316115PDF
MLDD 4-Way Power Dividers 7005180
7005180 080.5181.71.5416110PDF
MLDD 4-Way Power Dividers 7010180
7010180 091181.71.53160.810PDF
MLDD 4-Way Power Dividers 7020180
7020180 102181.71.52160.610PDF
Model NumberSorting NoFrequency Min. (GHz)Frequency Max. (GHz)Maximum VSWR InMaximum VSWR OutInsertion Loss (dB)Isolation (dB) Amplitude Tracking (dB) Phase Tracking (Degrees)Data Sheet / Outline DrawingsAdd To RFQ
7010400 011401.81.86.5111.522PDF
7010400K 021401.81.86.5111.522PDF
7030400 033401.90 to 32 GHz
2.50 to 40 GHz
1.70 to 32 GHz
2.00 to 40 GHz
3.00 to 32 GHz
3.60 to 40 GHz
130.511 to 32 GHz
15 to 40 GHz
PDF
7030400K 043401.90 to 32 GHz
2.50 to 40 GHz
1.70 to 32 GHz
2.00 to 40 GHz
3.00 to 32 GHz
3.60 to 40 GHz
130.511 to 32 GHz
15 to 40 GHz
PDF
7005265 050.526.51.81.74.3161.215PDF
7010265 06126.51.91.73.316115PDF
7020265 07226.51.91.72.316115PDF
7005180 080.5181.71.5416110PDF
7010180 091181.71.53160.810PDF
7020180 102181.71.52160.610PDF
