MLDD 4-Way Power Dividers 7030400K

SPECIFICATIONS

Model Number

7030400K

Freq. Min. (GHz)

3

Freq. Max. (GHz)

40
Maximum Input VSWR
1.90 to 32 GHz2.50 to 40 GHz
Maximum Output VSWR
1.70 to 32 GHz2.00 to 40 GHz
Insertion Loss (dB)
3.00 to 32 GHz3.60 to 40 GHz
Isolation (dB)
13
Amplitude Tracking (dB)
0.5
Phase Tracking (Degrees)
11 to 32 GHz 15 to 40 GHz

FEATURES

3.0 – 40.0 GHz Frequency Operation

Isolation: >13 dB

Insertion Loss: 3.0 dB

Amplitude Tracking: ±0.5 dB

2.4-mm Female Connectors

Custom Designs Available

Product Description

KRYTAR MLDD 4-way power dividers lend themselves to emerging wireless ultra-broadband designs and many test and measurement applications. KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. KRYTAR MLDD 4-way power dividers are a new class of patented directional devices.

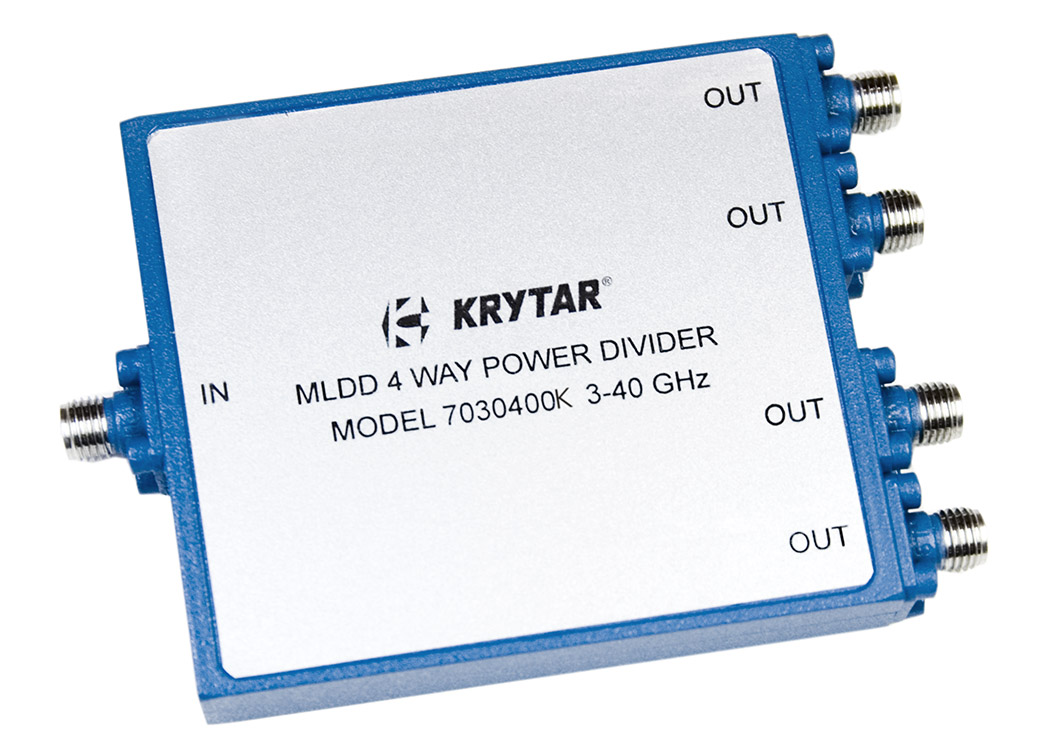

KRYTAR’s MLDD 4-way power divider, Model 7030400K, offers high performance over the ultra-broadband frequency range of 3.0 to 40.0 GHz in a compact, lightweight package.

KRYTAR’s technological advances provide excellent operating performance of this new 4-way unit. Model 7030400K covers the full ultra-broadband frequency range from 3.0 to 40.0 GHz with >13 dB Isolation and ±0.5 dB of maximum Amplitude Tracking and maximum Phase Tracking is ±11 degrees over 3-32 GHz and ±15 degrees over 32-40 GHz. Amplitude and Phase Tracking are the ratio of one output to the other output in dB or degrees respectively. Units with tighter amplitude and Phase Tracking specifications can be supplied. Contact the factory with your specific requirements. The 4-way divider exhibits Insertion Loss of <3.0 dB across the 3-32 GHz frequency range and <3.6 GHz across the 32-40 GHz frequency range. Maximum Input VSWR is 1.9 across the 3-32 GHz frequency range and 2.5 across the 32-40 GHz frequency range. Maximum Output VSWR is 1.7 across the 3-32 GHz frequency range and 2.0 across the 32-40 GHz frequency range. Input power rating is 10 watts with 2:1 load VSWRs.

The power divider is a compact package measuring just 2.64 inches (L) x 2.30 inches (W) x 0.40 inches (H), weighs only 4.1-ounces, and comes with standard 2.92-mm coaxial female (K) connectors.

KRYTAR’s new power divider offers the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. The directional coupler can also be manufactured to meet ridged military specifications.

KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications.

Common Definitions

 Microwave Frequency Bands
Band Designation Frequency Range (GHz)
UHF 300 MHz – 1.0 GHz
L 1.0 – 2.0
S 2.0 – 4.0
C 4.0 – 8.0
X  8.0 – 12.0
DBS 12.2 – 12.7
Ku 12.0 – 18.0
K 18.0 – 26.5
Ka  26.5 – 40.0
Q  30.0 – 50.0
U  40.0 – 60.0
V  50.0 – 75.0

Amplitude and phase tracking are the ratio of one output to the other in dB or degrees respectively.

Power Dividers (also power splitters and, when used in reverse, power combiners) and directional couplers are passive devices. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.

MLDD signifies Matched-line Directional Divider, a new class of microwave directional devices invented and patented by Thomas J. Russell, the founder of KRYTAR.

Directional Couplers: Components that allow two microwave circuits to be combined into one integrated system in one direction with the two completely isolated from each other in the opposite direction.

Couplers are passive microwave components used for distributing or combining microwave signals. Directional couplers are four-port circuits where one port is isolated from the input port.

The coupled port on a microstrip, or stripline directional coupler, is closest to the input port because it is a backward wave coupler. On a waveguide broadwall directional coupler, the coupled port is closest to the output port because it is a forward wave coupler.

VSWR is defined as the ratio of the maximum voltage to the minimum voltage in standing wave pattern along the length of a transmission line structure. It varies from 1 to (plus) infinity and is always positive.

Insertion Loss is the net unrecoverable power in dB dissipated within the circuit at any frequency within the specified range.

Frequency Sensitivity is the amount of frequency change in the carrier frequency per unit amplitude change in the message signal.
