KRYTAR’s 90 Degree Hybrid Couplers perform many functions, including splitting and combining signals in amplifiers, switching circuits, and antenna beam-forming networks used in a wide range of commercial and military applications. 90 degree hybrids are used in circuits requiring a balanced division of power into two transmission lines with 90 degree separation of phase.
KRYTAR’s Hybrid Couplers offer wide frequency coverage in single, compact packages which provide low insertion loss, high directivity and tight coupling. These hybrid couplers offer simple solutions in many applications within those frequency bands including electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing environments. For many space-restricted situations the compact size of these KRYTAR couplers are ideal. These couplers can be also be manufactured to meet military specifications.
KRYTAR offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications
|

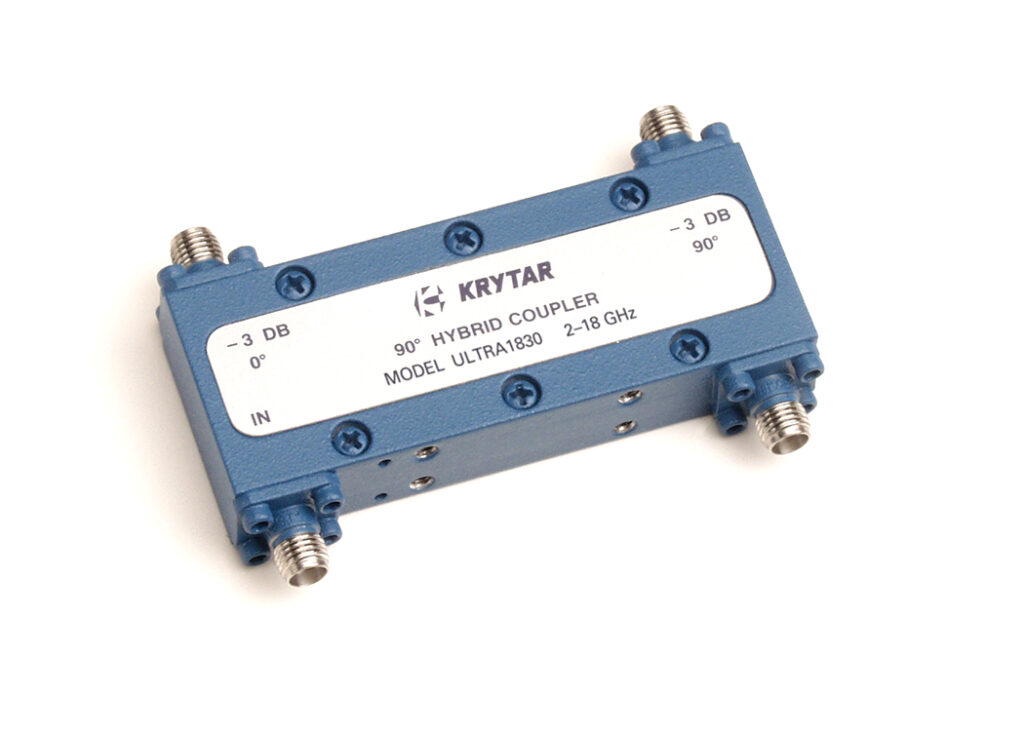

3 dB 90 Degree Hybrid Couplers• 0.5 GHz to 36 GHz |
|

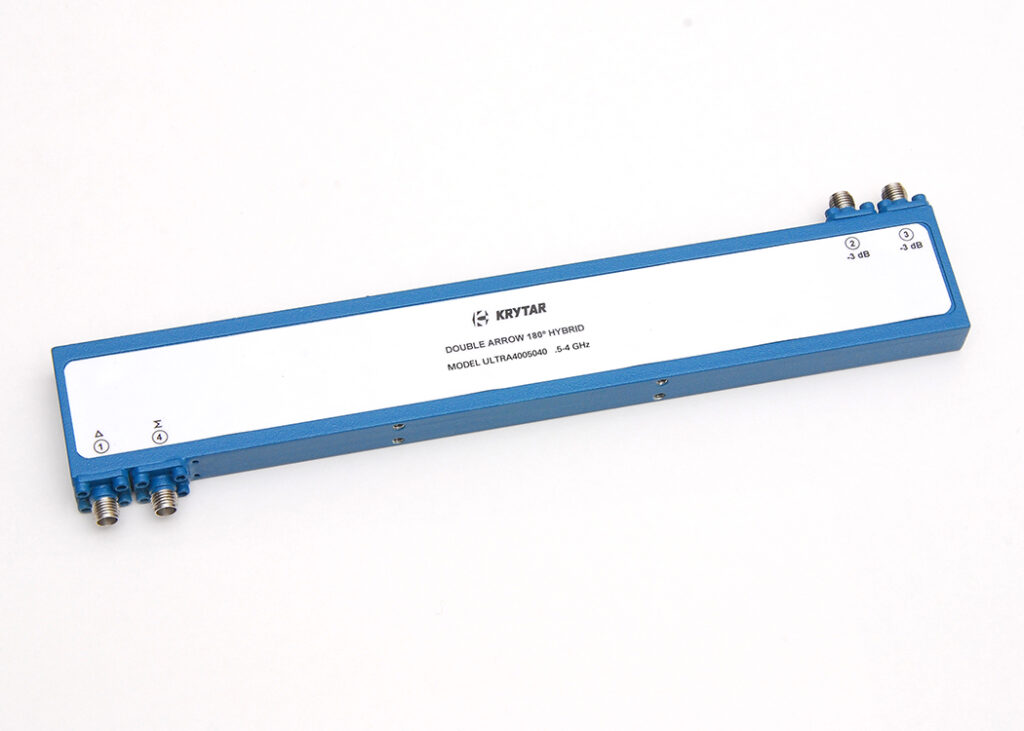

3 dB 180 Degree Hybrid Couplers• 0.5 GHz to 40 GHz |
