Spanish2-Way Power Dividers

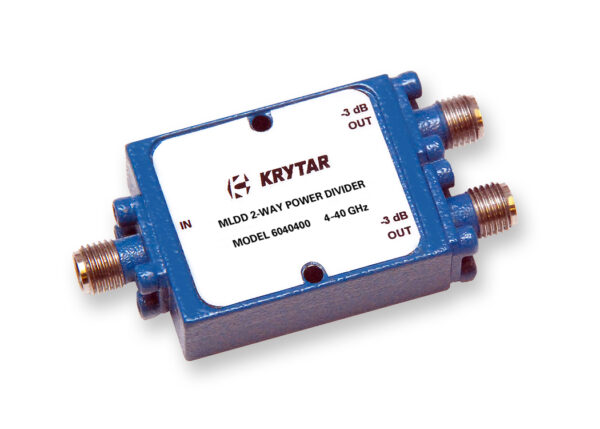

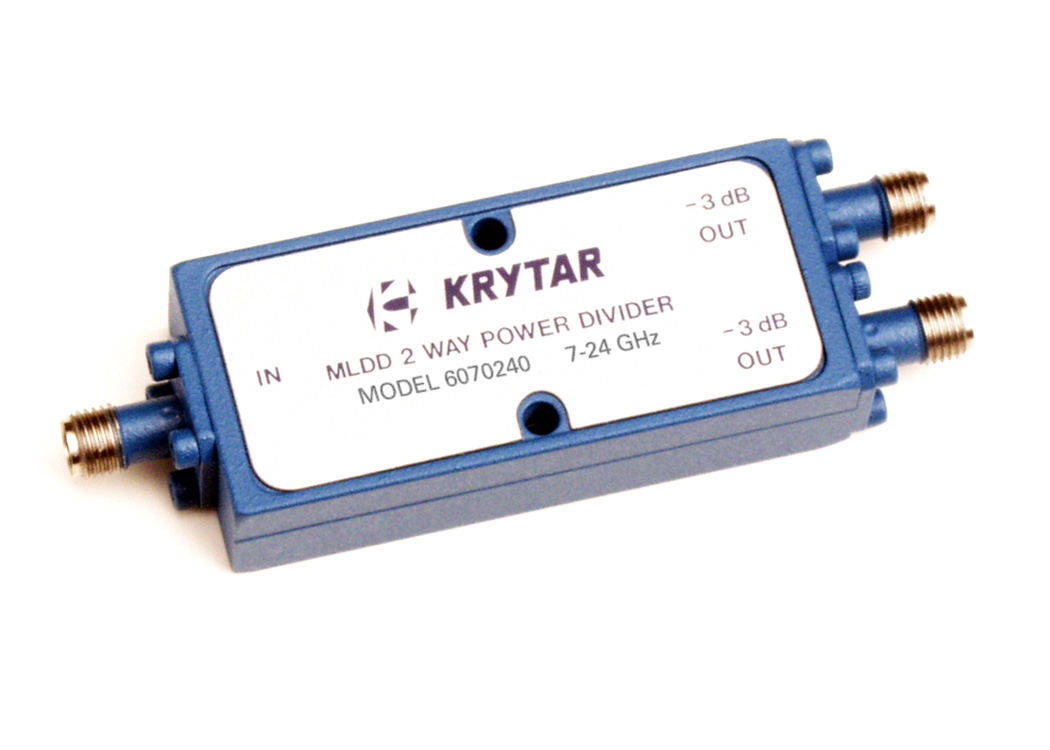

KRYTAR 2-way power dividers lend themselves to emerging wireless ultra-broadband designs and many test and measurement applications. KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. Our 2-way power dividers can also be manufactured to meet military specifications.
KRYTAR offers complete engineering services for custom designs that meet or exceed your critical performance and/or packaging specifications.
FEATURES
0.5 to 45.0 GHz
MLDD
| Product Image | Model Number | Frequency Min. (GHz) | Frequency Max. (GHz) | Maximum VSWR In | Maximum VSWR Out | Insertion Loss (dB) | Isolation (dB) | Amplitude Tracking (dB) | Phase Tracking (Degrees) | Data Sheet / Outline Drawings | Add To RFQ |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 6030450 | 3 | 45 | 2.3 | 1.80 to 36 GHz2.50 to 44.5 GHz | 2.10 to 36 GHz2.80 to 45 GHz | 14 | 0.50 to 36 GHz0.7 to 45 GHz | 10 to 36 GHz14 to 45 GHz | ||
 | 6010400K | 1 | 40 | 1.65 to 20 GHz1.85 to 40 GHz | 1.50 to 20 GHz1.70 to 40 GHz | 2.5 | 14 | 0.6 | 7 to 20 GHz14 to 40 GHz | ||
 | 6010400 | 1 | 40 | 1.65 to 20 GHz1.85 to 40 GHz | 1.50 to 20 GHz1.70 to 40 GHz | 2.5 | 14 | 0.6 | 7 to 20 GHz14 to 40 GHz | ||
 | 6030400 | 3 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 | ||
 | 6030400K | 3 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 | ||
 | 6060400 | 6 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 | ||
 | 6060400K | 6 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 | ||
 | 6100400 | 10 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 | ||
 | 6100400K | 10 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 | ||
 | 6180400 | 18 | 40 | 1.9 | 2.1 | 2.1 | 14 | 0.5 | 8 | ||
 | 6180400K | 18 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.5 | 8 | ||
 | 6265400 | 26.5 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.38 | 8 | ||
 | 6265400K | 26.5 | 40 | 1.9 | 1.9 | 1.9 | 14.5 | 0.38 | 8 | ||
 | 6005265 | 0.5 | 26.5 | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.50 to 18 GHz1.90 to 26.5 GHz | 19 | 0.30 to 18 GHz0.50 to 26.5 GHz | 6 to 18 GHz10 to 26.5 GHz | ||
 | 6010265 | 1 | 26.5 | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.20 to 18 GHz1.60 to 26.5 GHz | 19 to 18 GHz21 to 26.5 GHz | 0.30 to 18 GHz0.50 to 26.5 GHz | 6 to 18 GHz10 to 26.5 GHz | ||
 | 6020265 | 2 | 26.5 | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.45 to 18 GHz1.60 to 26.5 GHz | 1.10 to 18 GHz1.40 to 26.5 GHz | 19 to 18 GHz18 to 26.5 GHz | 0.30 to 18 GHz0.50 to 26.5 GHz | 6 to 18 GHz10 to 26.5 GHz | ||
 | 6005180 | 0.5 | 18 | 1.45 | 1.45 | 1.5 | 19 | 0.3 | 6 | ||
 | 6010180 | 1 | 18 | 1.45 | 1.45 | 1.2 | 19 | 0.3 | 6 | ||
 | 6020180 | 2 | 18 | 1.45 | 1.45 | 1.1 | 19 | 0.3 | 6 | ||
 | 6020080 | 2 | 8 | 1.45 | 1.45 | 0.8 | 19.5 | 0.25 | 5 |
