KRYTAR’s New line of high-performance ULTRA+ 180 Degree Hybrid Couplers offer the tightest specifications in the industry and are uniquely designed for systems applications to perform many functions, including splitting and combining signals in amplifiers, switching circuits, and antenna beam-forming networks used in a wide range of commercial and military applications where power or frequency needs to be monitored, leveled, alarmed or controlled.
| Model Number | Product Image | Frequency Min Ghz | Frequency max ghz | Amplitude Imbalance dB | Phase Imbalance Degrees | Isolation dB Min | Vswr Max | Insertion Loss dB Max | Datasheet/Outline Drawings | Add To RFQ | |
|---|---|---|---|---|---|---|---|---|---|---|---|

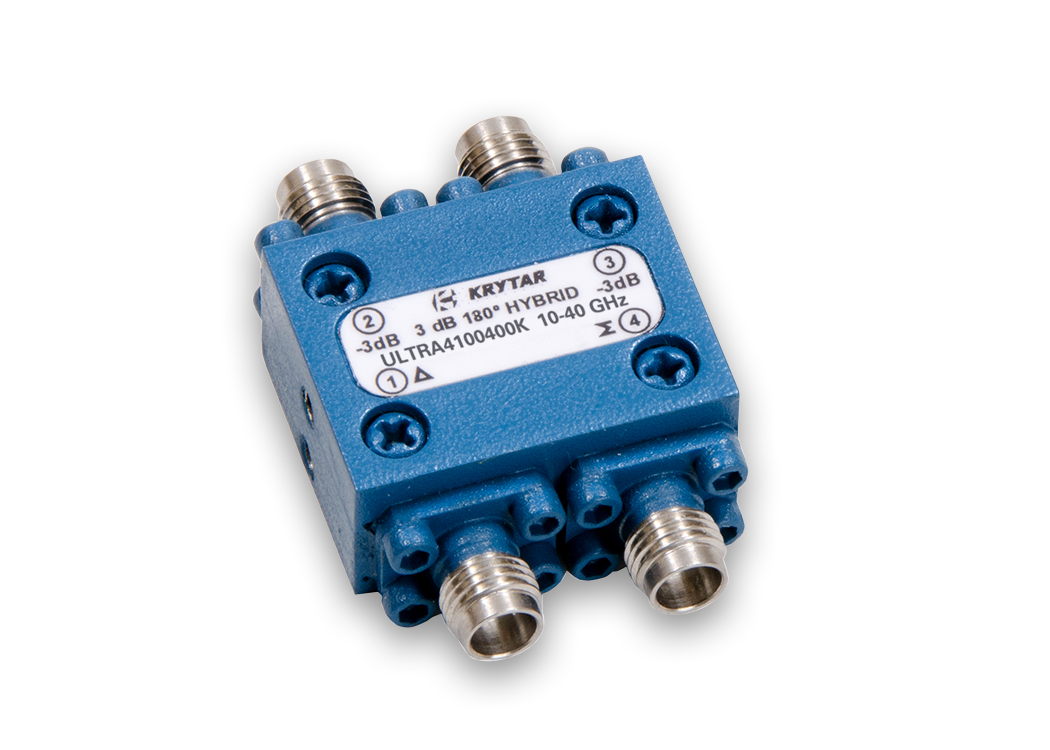

| ULTRA4100400 |  | 10 | 40 | ±0.9 | ±8 | >15 | 1.7 | <1.5 | | 1 | |
| ULTRA4100400K |  | 10 | 40 | ±0.9 | ±8 | >15 | 1.7 | <1.5 | | 2 | |
| ULTRA4060200 |  | 6 | 20 | ±0.6 | ±18 | >17 | 1.6 | <1.2 | | 3 | |

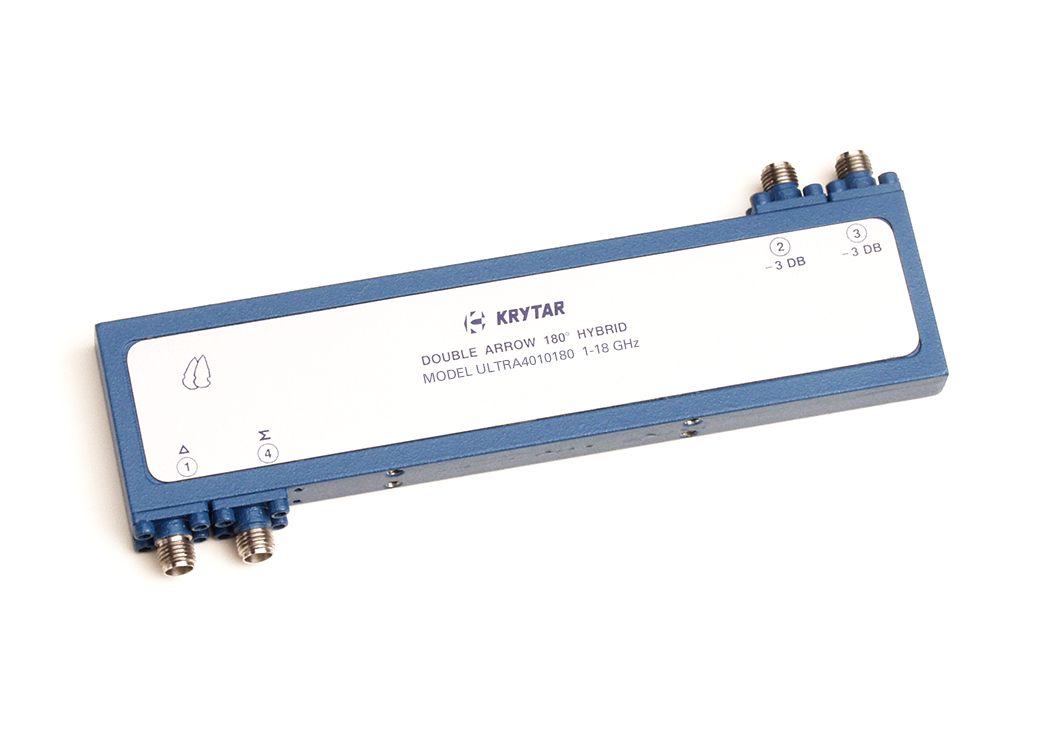

| ULTRA4010180 |  | 1 | 18 | ±0.4 | ±8 | >15 | 1.6 | <2.5 | | 4 | |
| ULTRA4020180 |  | 2 | 18 | ±0.45 | ±10 | >17 | 1.7 | <1.7 | | 5 | |

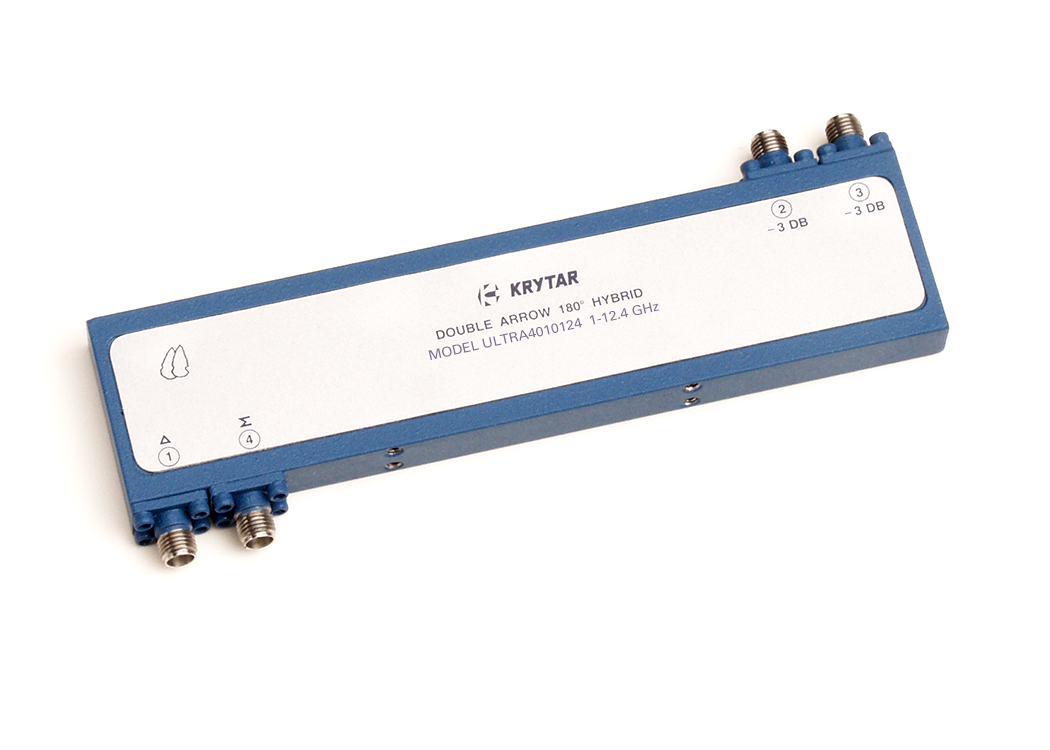

| ULTRA4010124 |  | 1 | 12.4 | ±0.4 | ±7 | >19 | 1.5 | <2.0 | | 6 | |
| ULTRA4040124 |  | 4 | 12.4 | ±0.3 | ±4 | >19 | 1.4 | <0.6 | | 7 | |

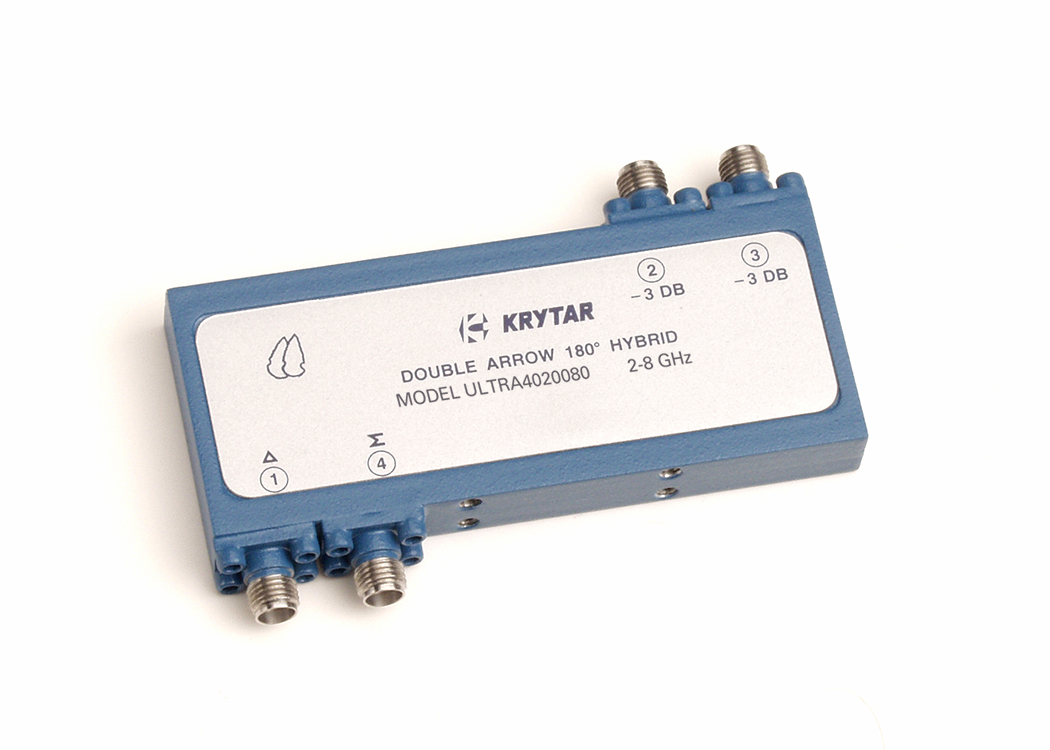

| ULTRA4020080 |  | 2 | 8 | ±0.3 | ±6 | >19 | 1.4 | <1.0 | | 8 | |

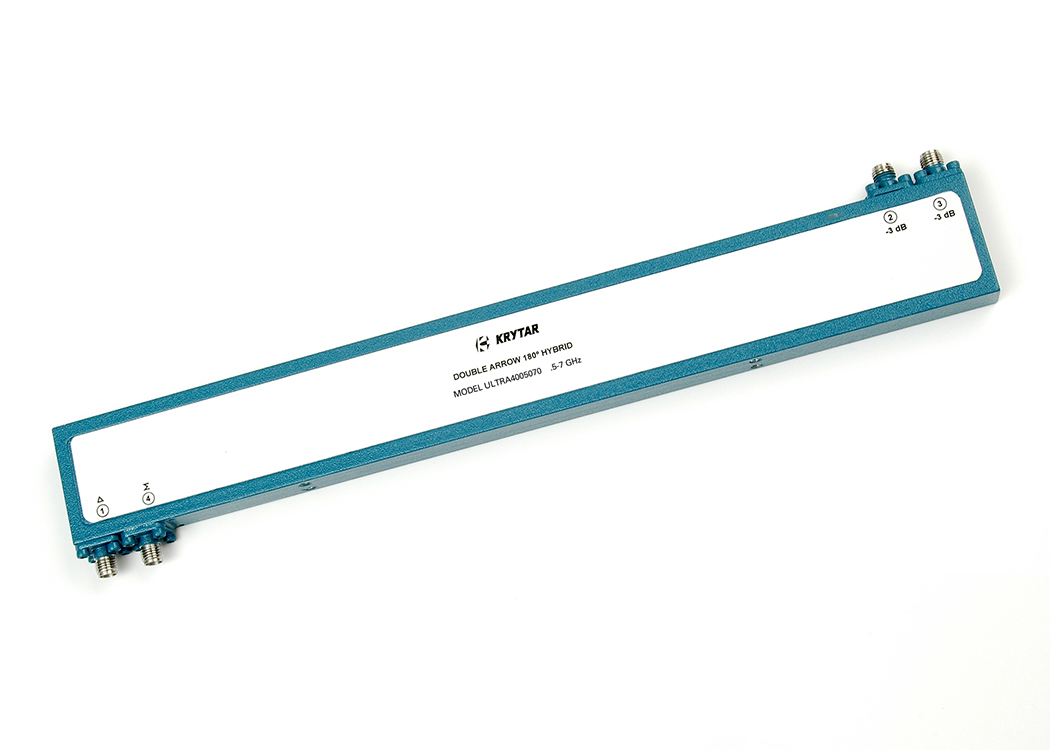

| ULTRA4005070 |  | 0.5 | 7 | ±0.6 | ±10 | >18 | 1.3 | <2.7 | | 9 | |

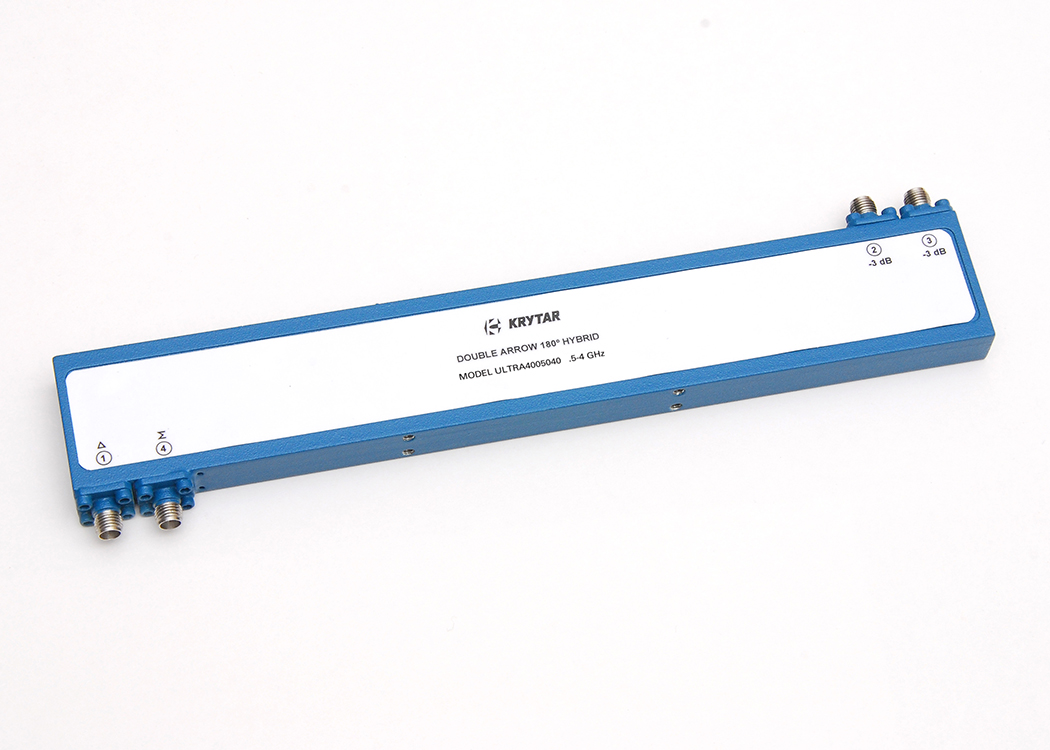

| ULTRA4005040 |  | 0.5 | 4 | ±0.7 | ±12 | >18 | 1.33 | <1.8 | | 10 |
KRYTAR’ ULTRA+ 180 Degree Hybrid Couplers offer ultra-wideband frequency coverage in single, compact packages, which provide low insertion loss, high directivity and tight coupling. These hybrid couplers offer excellent solutions for many ultra-broadband applications including electronic warfare (EW), mmWave, 5G NR (New Radio), 6G, Wi-Fi 6 and Wi-Fi 6E, SATCOM, radar, Multiple-Input and Multiple-Output (MIMO) radio links, signal monitoring and measurement, antenna beamforming, and electromagnetic compatibility (EMC) testing environments. This ultra-wideband coupler can also be manufactured to meet rigid military specifications.
These ULTRA+ 180 Degree Hybrid Couplers enhance the selection of multi-purpose, stripline designs that exhibit excellent coupling over a broadband frequency range of 0.5 to 40.0 GHz (UHF- through Ka-Bands) in single, compact and lightweight packages.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications.
