Beamforming
SPECIFICATIONS
KRYTAR offers the widest frequency coverage in single-packaged beamforming network designs and provides superior performance in a wide range of RF and microwave applications. KRYTAR’s long history of excellence in the design of broadband microwave components offers the unique ability to produce ultra-broadband passive beamforming network solutions.
FEATURES
Frequencies Up to 18 GHz
Ultra-Broadband
RF and Microwave Applications
5G/mmWave Applications
RF and microwave system engineers can look to KRYTAR to take the confusion and complexity out of their design challenges with unique mechanical and electrical solutions using proprietary computer-aided-engineering (CAE) tools.

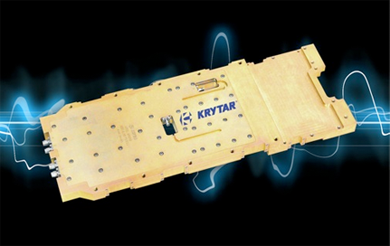

KRYTAR beamforming networks are multifaceted assemblies for a wide range of applications including multiple antenna and antenna arrays used in military electronic systems and commercial communications systems. Superior performance and functionality as well as unique form-fit-function designs bring unique solutions to those difficult engineering and manufacturing challenges. Many types of connectors can be designed into the integrated assembly including: SMA, Type-N, APC-7, and 3.5mm.
KRYTAR offers complete engineering services for custom designs that meet or exceed your critical performance and/or packaging specifications.
NEW KRYTAR BUTLER MATRIX FAMILY

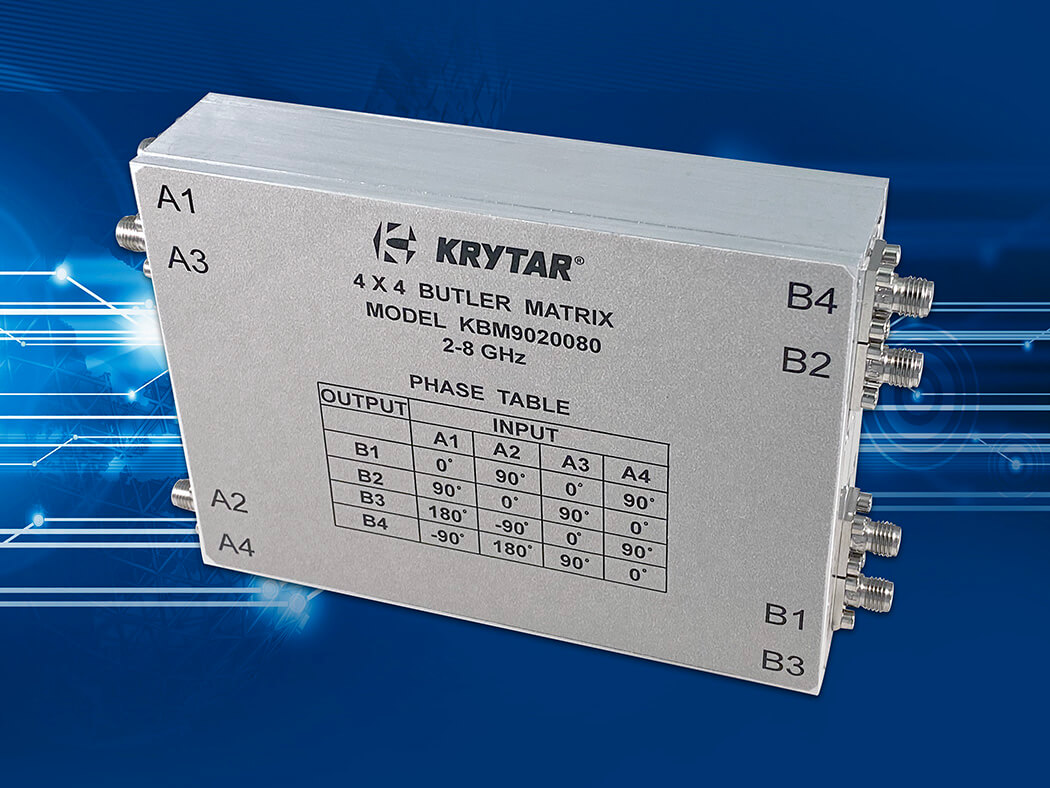

The NEW KRYTAR 4×4 Butler Matrix family uses KRYTAR’s high-performance 90- and 180-degree Hybrid
Couplers providing super phase accuracy, amplitude imbalance, stability and repeatability. A Butler matrix is a
beamforming network used to feed a phased array of antenna elements. Its purpose is to control the direction
of a beam, or beams, of radio transmission.
KRYTAR Butler Matrix Family Offers:
- 0.5-40 GHz Frequency Range
- Excellent Phase Imbalance
- Excellent Amplitude Imbalance
- High Isolation
- Low Insertion Loss and VSWR
- Superior Electrical Performance
- Rugged Designs
- KRYTAR High-Performance Hybrid Couplers
- Custom Frequency Options
