MLDD 8-Way Power Dividers 8010180

SPECIFICATIONS

Model Number

8010180

Freq. Min. (GHz)

1

Freq. Max. (GHz)

18
Maximum Input VSWR
2.1
Maximum Output VSWR
1.75
Insertion Loss (dB)
5.5
Isolation (dB)
17
Amplitude Tracking (dB)
1
Phase Tracking (Degrees)
15

FEATURES

1.0 – 18.0 GHz (S thru Ku-Bands)

Isolation: >17 dB

Insertion Loss: 5.5 dB

Amplitude Tracking: ±1.0 dB

Phase Tracking: ±15 Degrees

3.5-mm Female Connectors

Product Description

An 8-way power divider splits an input signal into eight output signals with minimal losses. 8-way power dividers are widely used in wireless systems requiring an even division of input power, providing signals at 8 output ports. Unless otherwise specified, the output signals generated by an 8-way power divider are usually of equal amplitude and phase. Based on the system requirement dividers with can vary the amplitude and phase of the signals at the output.

KRYTAR MLDD 8-way power dividers lend themselves to emerging wireless ultra-broadband designs and many test and measurement applications. KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. KRYTAR MLDD 8-way power dividers are a new class of patented directional devices.

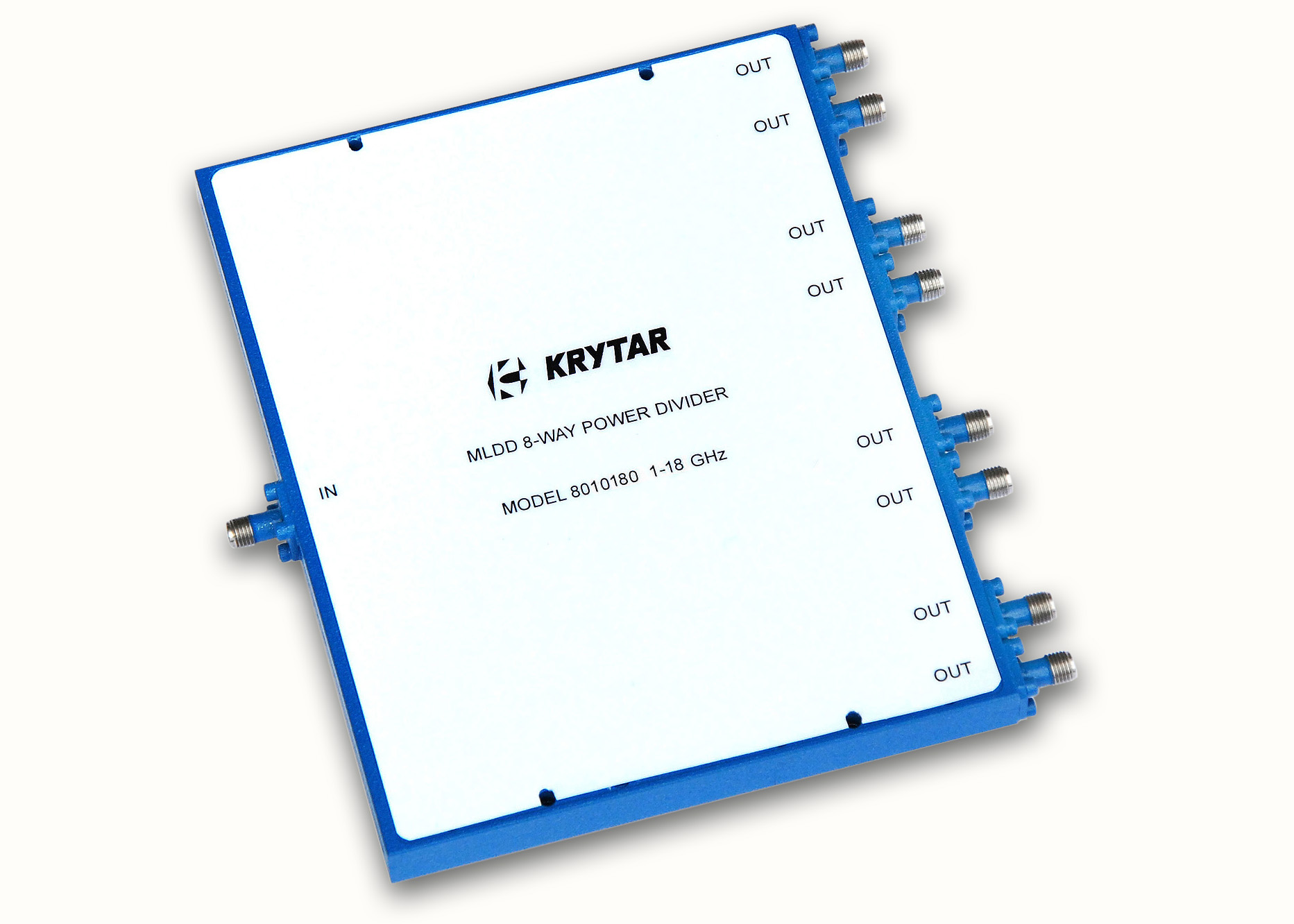

KRYTAR’s MLDD 4-way power divider, Model 8010180, offers high performance over the broadband frequency range of 1.0 to 18.0 GHz (L thru Ku-Bands) in a compact, lightweight package.

KRYTAR’s technological advances provide excellent operating performance of this new 8-way unit. Model 8010180 covers the full frequency range from 1.0 to 18.0 GHz with >17 dB Isolation, ±1.0 dB of maximum Amplitude Tracking and maximum Phase Tracking is ±15 degrees. Amplitude and Phase Tracking are the ratio of one output to the other output in dB or degrees respectively. Units with tighter amplitude and Phase Tracking specifications can be supplied. Contact the factory with your requirements. This 8-way divider exhibits Insertion Loss of 5.5 dB across the full frequency range. Input VSWR is 2.10 and Output VSWR is 1.75. Input power rating is 10 watts with 2:1 load VSWRs.

The power divider is a compact package measuring just 5.96 inches (L) x 4.75 inches (W) x 0.52 inches (H), weighs only 22.5-ounces, and comes with standard 3.5-mm coaxial female connectors.

KRYTAR’s new power divider offers the widest frequency coverage in a single package on the market and provides superior performance. Targeting broadband electronic warfare (EW) systems and complex switch-matrix applications, for example, KRYTAR has used its proprietary design to produce a wide assortment of matched-line directional dividers (MLDD) with ultra-high performance over a broadband frequency range. The directional coupler can also be manufactured to meet ridged military specifications.

KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications.

Common Definitions

 Microwave Frequency Bands
Band Designation Frequency Range (GHz)
UHF 300 MHz – 1.0 GHz
L 1.0 – 2.0
S 2.0 – 4.0
C 4.0 – 8.0
X  8.0 – 12.0
DBS 12.2 – 12.7
Ku 12.0 – 18.0
K 18.0 – 26.5
Ka  26.5 – 40.0
Q  30.0 – 50.0
U  40.0 – 60.0
V  50.0 – 75.0

Amplitude and phase tracking are the ratio of one output to the other in dB or degrees respectively.

Power Dividers (also power splitters and, when used in reverse, power combiners) and directional couplers are passive devices. They couple a defined amount of the electromagnetic power in a transmission line to a port enabling the signal to be used in another circuit.

MLDD signifies Matched-line Directional Divider, a new class of microwave directional devices invented and patented by Thomas J. Russell, the founder of KRYTAR.

Directional Couplers: Components that allow two microwave circuits to be combined into one integrated system in one direction with the two completely isolated from each other in the opposite direction.

Couplers are passive microwave components used for distributing or combining microwave signals. Directional couplers are four-port circuits where one port is isolated from the input port.

The coupled port on a microstrip, or stripline directional coupler, is closest to the input port because it is a backward wave coupler. On a waveguide broadwall directional coupler, the coupled port is closest to the output port because it is a forward wave coupler.

VSWR is defined as the ratio of the maximum voltage to the minimum voltage in standing wave pattern along the length of a transmission line structure. It varies from 1 to (plus) infinity and is always positive.

Insertion Loss is the net unrecoverable power in dB dissipated within the circuit at any frequency within the specified range.

Frequency Sensitivity is the amount of frequency change in the carrier frequency per unit amplitude change in the message signal.
