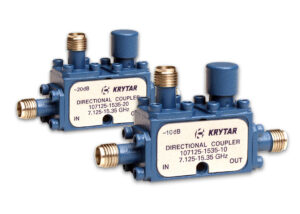

SUNNYVALE, CALIF. – – – KRYTAR, Inc., a leader in the design and production of ultra-broadband microwave components and test equipment announces two (2) new Directional Couplers operating in the wideband frequency range of 7.125 to 15.35 GHz (C- thru Ku-Bands). The directional couplers are designed for systems applications where external leveling, precise monitoring, signal mixing or swept transmission and reflection measurements are required. The new directional couplers are uniquely suited for the emerging mmWave and 6G markets. These new KRYTAR Directional Couplers offer the tightest specifications available on the market.
Model 107125-1535-10 offers Nominal Coupling of 10 ±1.0 dB, Frequency Sensitivity of ±0.3 dB, Insertion Loss (including coupled power) of <1.1 dB, Directivity of >13 dB, Maximum VSWR (any port) is 1.4, and Input Power Rating of 20 W average and 3 kW peak.
Model 107125-1535-20 offers Nominal Coupling of 20 ±1.0 dB, Frequency Sensitivity of ±0.3 dB, Insertion Loss (including coupled power) of <0.7 dB, Directivity of >14 dB, Maximum VSWR (any port) is 1.4, and Input Power Rating of 20 W average and 3 kW peak.
Both directional couplers come with industry-standard 3.5mm Female connectors and optional 3.5mm Male connectors. The compact packages measure just 1.12 inches (L) x 0.53 inches (W) x 0.64 inches (H) and weigh only 1.1 ounces. Operating temperature is -54° to +85° C.
KRYTAR Directional Couplers are designed for systems applications where external leveling, precise monitoring, signal mixing or swept transmission and reflection measurements are required. KRYTAR Directional Couplers offer excellent solutions for many ultra-broadband applications including electronic warfare (EW), mmWave, 6G, 5G NR (New Radio), Wi-Fi 6 and Wi-Fi 6E, SATCOM, radar, MIMO (Multiple-Input and Multiple-Output) radio links, signal monitoring and measurement, antenna beamforming, and EMC (electromagnetic compatibility) testing environments. The couplers can be also be manufactured to meet military specifications.
KRYTAR also offers complete engineering services for custom designs that meet or exceed critical performance and/or packaging specifications. Data sheets with specifications and package outline drawings are available via KRYTAR’s Web site. Additional information can be obtained by contacting KRYTAR, Inc., 1288 Anvilwood Avenue, Sunnyvale, CA 94089. Tel: +1-408-734-5999, Fax: +1-408-734-3017, Toll Free: +1-877-734-5999, e-mail: [email protected], Web: krytar.com
KRYTAR, Inc., founded in 1975, is a privately-owned corporation specializing in the design and manufacture of ultra-broadband microwave components and test equipment for both commercial and military applications. The KRYTAR product line covers DC to 110 GHz and includes directional couplers and detectors, 3 dB hybrids, MLDD power dividers, terminations, coaxial adapters, bias tees, and Butler matrices, monopulse comparators and beamformers. KRYTAR microwave components are manufactured in full compliance with the EU RoHS-6 Environmental Requirements.
